AG60 Torch

SPEC

Specification:
Item Type: Welding Torch Head
Material: ABS plastic, brass, copper
Model: AG60
Welding Thickness: Approx. 0-45mm / 0-1.8in
Interface: Universal
Welding Gun Hole Diameter: Approx. 1mm / 0.04in
Applicable Air: Compressed air
Application: Metal cutting
Features: With protection switch
How to Use: Connect to the welding machine, protect it, and press the button to use it.

Package List:
1 x AG60 Air Plasma Cutter Torch Gun x3m/5m

Feature:
1.   Surface electroplating treatment, higher hardness, wear resistance, corrosion resistance and aging resistance.
2.   The arcing efficiency of the refined welding torch head is fast, and the metal cutting seams are neat.
3.   Select industrial copper and brass casting, high temperature and corrosion resistance, stable and safe operation.
4.   Thickened and hardened manufacturing, no need for frequent and slippery welding torch heads.
5.   The handle has a protection switch, which is connected to the electric welding

Introduction Related

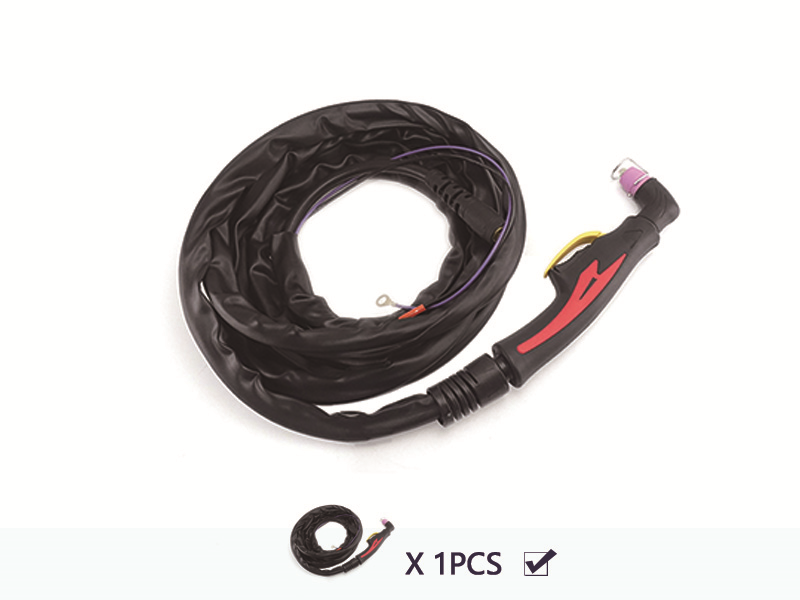

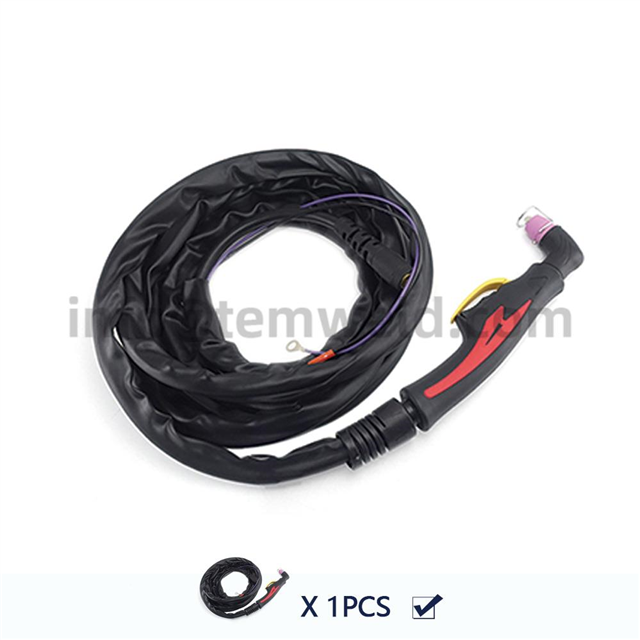

Package List:

please choose the size you need.

1 PCS AG60 Spear

Description:

100% brand new and high quality.

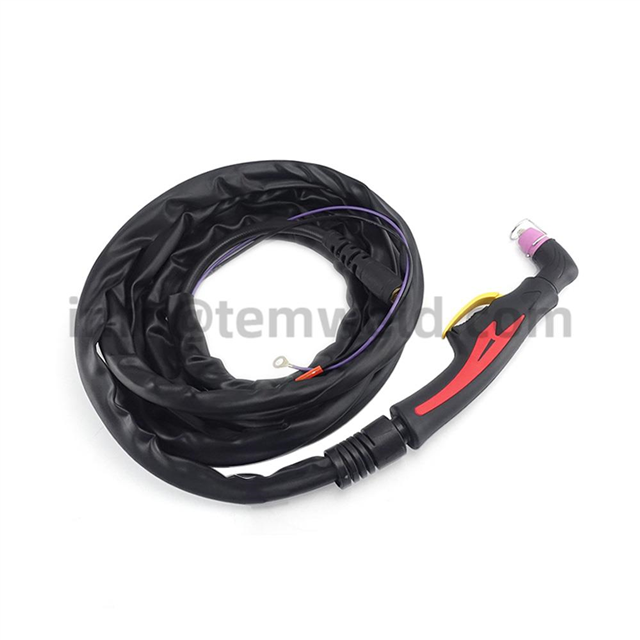

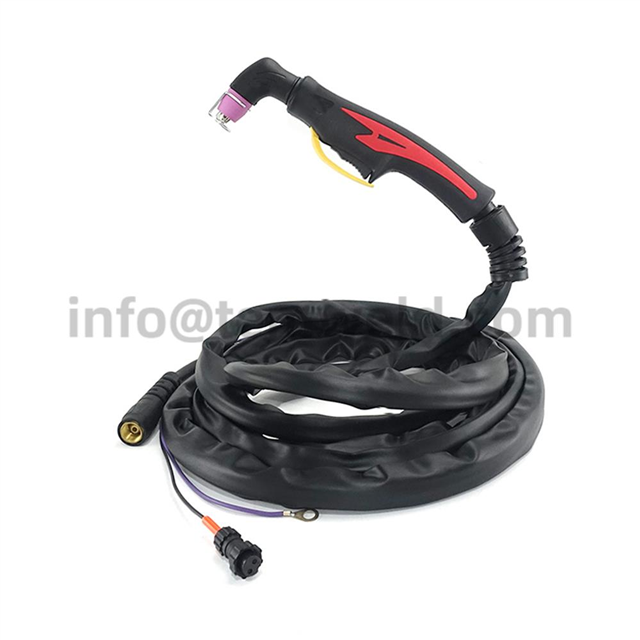

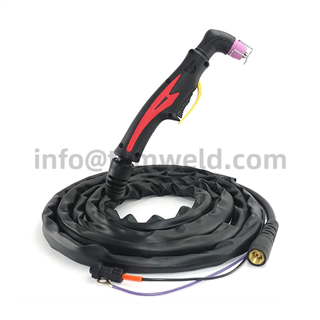

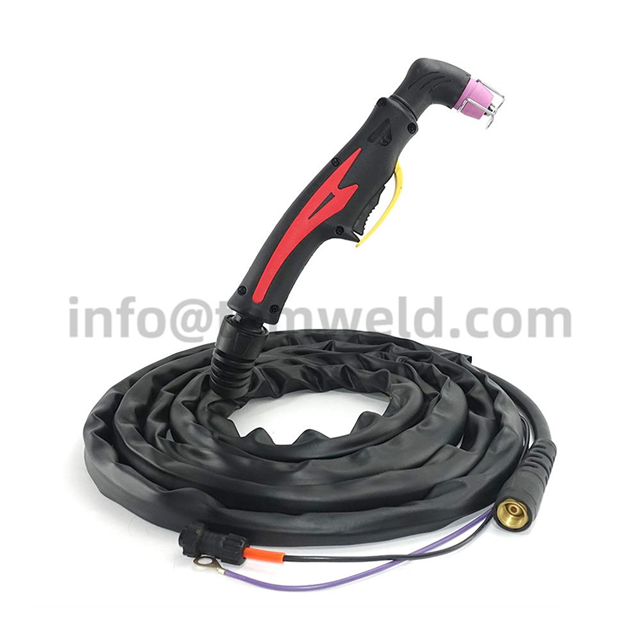

It is AG60 60A Plasma Cutting Torch.

HF Ignition with Pilot Arc, easy to start arc.

It is compatible with standard of AG60 torch for 60A Plasma Cutting Machine. (i.e. CUT50, CUT60, CUT70)

(Attention: if the machine does not have Pilot Arc function, then you do not need to connect the Pilot Arc cable. Just use it as normal HF torch.)

Rated cutting current 60A, 40%.

Cutting Thickness: 18mm Carbon Steel (it is more depending on the cutting machine).

Cable length: 3m (9.8ft) or 5m (16.4ft) for option.

Electric & Air Connector: M16x1.5mm.

Control Plug: 2pin.

Pilot Arc Connector (if your machine does not support Pilot Arc, then you can ignore it, just use it as HF Torch).

Specification:

Cable length: 3m (9.8ft) or 5m (16.4ft) for option.
