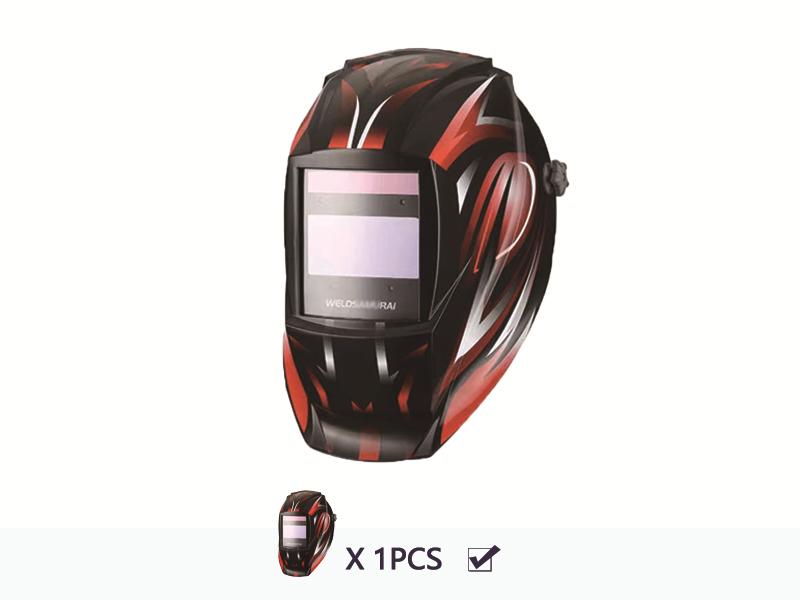

Package List:

Description:

Optical class 1/2/1/2

Viewing area (mm) 93*43

Size of cartridge (mm) 110*90*9

Arc Sensors 2

Light/Dark state DIN4/9-13

Shade Control Variable adjusted by external knob

Power On/Off AUTO

Sensitivity Control Variable adjusted by inside knob

UV/IR Protection DIN16

Power Supply Solar cells+1*CR2032 lithium battery

Switiching time 1/15000s

Delay time（dark to light）0.1-1.0S Variable adjusted by internal knob

Low TIG amps rated 10amps(DC/AC)

Grinding YES

Low Volume Alarm NO

ADF Self Check NO

Operating Tep.（℃） -5~ +55

Storing Tep.（℃）-20~ +70

Specification:

area: 4.06 "x 2.24" /103 x 57mm
